Arden

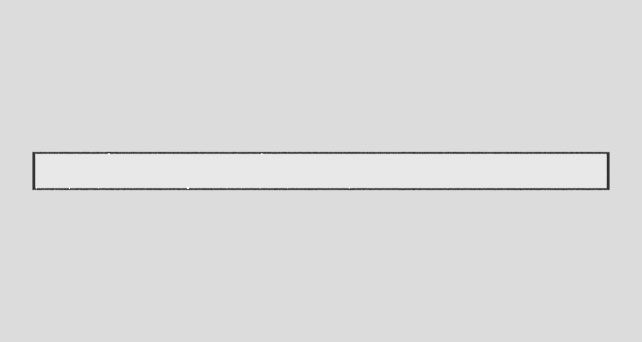

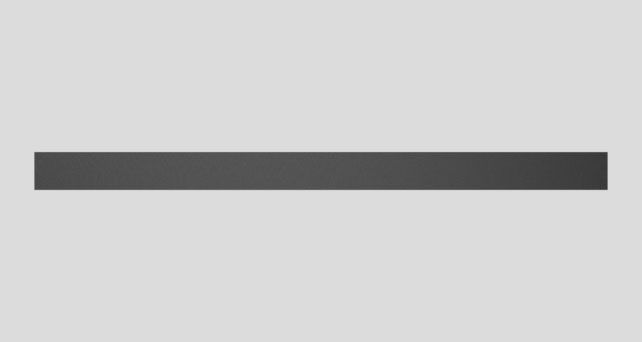

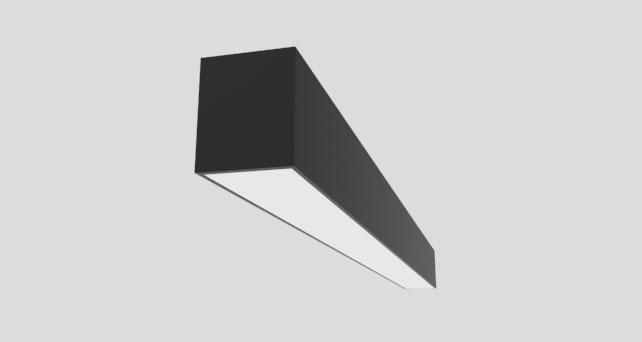

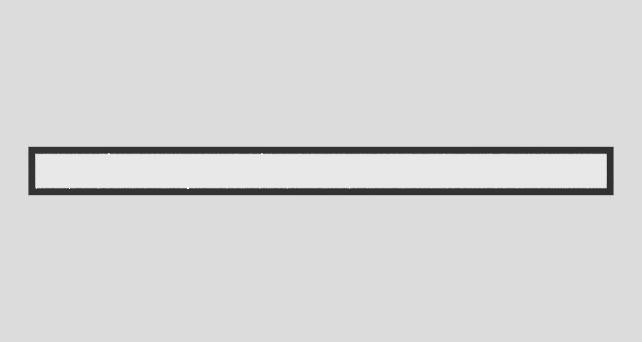

The Arden LED extrusion profile by JB LEDS is a high-performance lighting solution for commercial and architectural applications. Standing 90 mm high, it is offered in 75 mm and 95 mm widths—the latter featuring a lip for recessed mounting. An advanced reflector system optimises output and efficiency, while the sleek profile integrates cleanly into modern interiors.
Diffusers
  • Frosted (Df23) – Soft diffusion
  • Opal (OV200) – Uniform glow
  • Miro5 (JBLED LV Louvre Reflector) – Precise reflection
  • Micro Prismatic – Glare reduction
Finishes Anodised aluminium, powder-coated black or white; custom colours available on request.
Mounting Wire suspension, surface and wall mounting, recessed installation, and T-bar ceiling grid compatibility.
Performance Accepts dimmable and non-dimmable LED modules from 3000 K (warm white) to 6500 K (cool white). Low Output (28004742) and High Output (28004774) variants available. Rated for 70% lumen maintenance at 50,000 hours.
Control Driver options include Fixed Output, DSI, DALI, SwitchDIM, and 1–10 V protocols, enabling flexible control strategies from ambient to high-intensity applications.
High demand. Switched to K2.6 Instant for speed. Upgrade to use K2.6 Thinking.

Australian Manufacturing & Warranty

JB LEDs designs and manufactures linear LED lighting in Melbourne, Australia. We use only Tridonic LED modules and drivers, and every fitting is backed by a 5-year warranty. For Australian commercial and architectural projects, local manufacturing means faster lead times, local support, and compliance with Australian standards.

Related Products

Explore the JB LEDs linear lighting range:

Frequently Asked Questions

Q: What is the difference between Low Output and High Output variants?
A: Low Output (model 28004742) is ideal for ambient and accent lighting applications. High Output (model 28004774) delivers maximum lumen output for task and high-intensity commercial lighting.

Q: Which control protocols are supported?
A: JB LEDs linear fittings support Fixed Output, DSI, DALI, SwitchDIM, and 1–10 V dimming protocols, making them compatible with most commercial building management systems.

Q: What colour temperatures are available?
A: Our LED modules are available from 3000 K (warm white) through to 6500 K (cool white), with 4000 K (neutral white) also available to suit ambient, task, or high-intensity applications.

Q: Are custom finishes available?
A: Yes. Standard finishes include anodised aluminium and powder-coated black or white. Custom colours and Dulux Mannex textured finishes are available on request.

Q: What is the warranty period?
A: All JB LEDs linear lighting products are backed by a 5-year warranty and are manufactured in Melbourne using Tridonic LED modules and drivers.

Q: What is the rated lifespan?
A: Our LED modules are rated for 70% lumen maintenance after 50,000 hours of operation.
