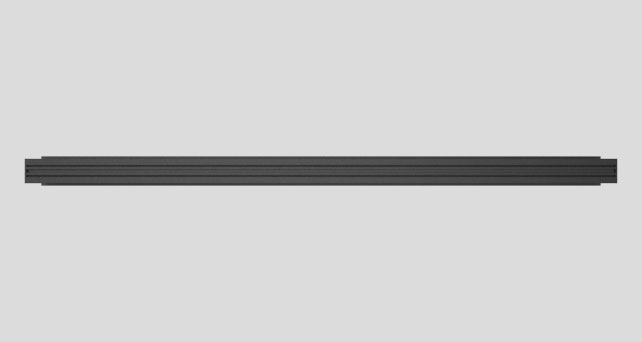

Lustro

The Lustro LED extrusion profile by JB LEDS is a compact linear lighting solution for commercial and architectural applications. At 90 mm high by 60.5 mm wide, it is engineered for low-lumen output with wider LED pitch spacing to eliminate spotting and dotting.
Diffusers
  • Frosted (Df23) – Soft diffusion
  • Opal (OV200) – Even illumination
  • Micro Prismatic – Glare reduction
Finishes Anodised aluminium, powder-coated black or white; custom colours available on request.
Mounting Recessed front and back.
Performance Accepts constant-current LED modules, dimmable and non-dimmable, from 3000 K (warm white) to 6500 K (cool white). Low Output (28004742) and High Output (28004774) variants. Rated for 70% lumen maintenance at 50,000 hours. Power consumption ranges from 2.11 W to 11.40 W per board, with output up to 7,239 lm/m (Opal). Per 1.12 m, output spans 886 lm (Frosted, Low Output) to 8,108 lm (Opal, High Output).
Control Driver options include Fixed Output, DSI, DALI, SwitchDIM, and 1–10 V protocols.

Australian Manufacturing & Warranty

JB LEDs designs and manufactures linear LED lighting in Melbourne, Australia. We use only Tridonic LED modules and drivers, and every fitting is backed by a 5-year warranty. For Australian commercial and architectural projects, local manufacturing means faster lead times, local support, and compliance with Australian standards.

Related Products

Explore the JB LEDs linear lighting range:

Frequently Asked Questions

Q: What is the difference between Low Output and High Output variants?
A: Low Output (model 28004742) is ideal for ambient and accent lighting applications. High Output (model 28004774) delivers maximum lumen output for task and high-intensity commercial lighting.

Q: Which control protocols are supported?
A: JB LEDs linear fittings support Fixed Output, DSI, DALI, SwitchDIM, and 1–10 V dimming protocols, making them compatible with most commercial building management systems.

Q: What colour temperatures are available?
A: Our LED modules are available from 3000 K (warm white) through to 6500 K (cool white), with 4000 K (neutral white) also available to suit ambient, task, or high-intensity applications.

Q: Are custom finishes available?
A: Yes. Standard finishes include anodised aluminium and powder-coated black or white. Custom colours and Dulux Mannex textured finishes are available on request.

Q: What is the warranty period?
A: All JB LEDs linear lighting products are backed by a 5-year warranty and are manufactured in Melbourne using Tridonic LED modules and drivers.

Q: What is the rated lifespan?
A: Our LED modules are rated for 70% lumen maintenance after 50,000 hours of operation.
