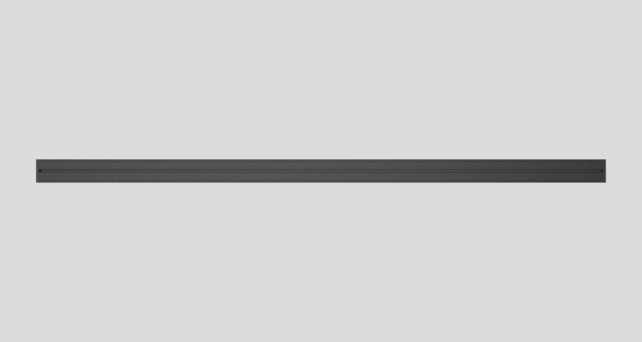

The Duo LED extrusion profile by JB LEDS is a slim, versatile linear lighting solution for direct and indirect dual-sided illumination in commercial and architectural settings. Utilizing universal technology, it measures 65 mm in height x 46 mm width, offering a compact design for efficient heat dissipation and seamless integration.

Key features include diffuser options: Frosted Df23 for soft diffusion, Opal OV200 for uniform and low glare light, and Micro Prismatic for maximum glare reduction (UGR 9%). Finishes comprise anodized aluminum for durability, powder-coated black/white, or custom colors on request.

Mounting supports wire suspension for pendants or wall mounting for accents, enabling flexible installations. Compatible with constant current LED modules in dimmable/non-dimmable formats across 3000K (warm white) to 6500K (cool white), it ensures 70% lumen maintenance after 50,000 hours. Variants: Low Output (model 28004742) and High Output (28004774).

Driver options: Fixed Output, DSI, DALI, SwitchDIM, and 1-10V for precise control. Performance scales from ~2W to 22W per side (4-45W total) per 1.12m.
